Visual Servoing — Fixed Camera

Problem Statement

Image-based visual servoing (IBVS) with a strapdown camera: the camera is rigidly bolted to the airframe, so the image is whatever the drone is pointing at. There is no second actuator to absorb tracking error — the only way to keep the target in frame is to move and yaw the vehicle itself.

That constraint is what makes the fixed-camera case harder than the gimbal variant, and it is the reason heading has to be servoed as a first-class loop rather than left to the position controller.

Model and Formulation

Three loops close on image measurements alone:

Image error	Actuated by
horizontal bbox offset $\mathrm{\Delta }u$	body-lateral velocity
vertical bbox offset $\mathrm{\Delta }v$	climb rate
bbox size error $\mathrm{\Delta }s$	body-forward velocity

The body-frame velocity command is a proportional map of the image error:

$${\mathbf{v}}_{\text{body}}=K_p{\mathbf{e}}_{\text{img}},{\mathbf{e}}_{\text{img}}=[s^{\star }-s,-\mathrm{\Delta }u,-\mathrm{\Delta }v]$$

The lateral and vertical terms carry a negative sign because the image $u$ axis points right and $v$ points down, while the body $y$ axis points left and $z$ points up (FLU). Apparent size $s$ stands in for range: the target is too far when it looks too small.

Algorithm Procedure

1. Detect the target and extract its bounding box in the image frame.
2. Form the image error against the desired centre and apparent size.
3. Flip the lateral and vertical signs into the body frame.
4. Servo heading toward the target bearing to hold it inside the field of view.
5. Emit saturated body-frame velocity commands.

Tuning and Failure Modes

• Check the sign convention before you touch the gains. Both image errors flip sign entering the control law. Get one wrong and the drone chases the target out of frame — positive feedback that looks exactly like an unstable gain, and that no amount of detuning will fix.
• The field of view is the real constraint. With no gimbal, a narrow FOV turns a momentary tracking lag into a lost target. Heading has to lead, not follow, the lateral position loop.
• Anchor the position setpoint to the current position. Integrating the velocity command into a persistent setpoint means that once the position loop starts lagging, nothing in the image pulls the setpoint back.
• Gain $K_p$ too high produces oscillatory camera motion, which corrupts the very measurement the loop depends on.
• Occlusion stops the bounding box updating; without explicit fallback logic the last error is held and the drone keeps flying on stale data.

Implementation and Execution

python -m flybots.simulations.perception.visual_servoing_fixed

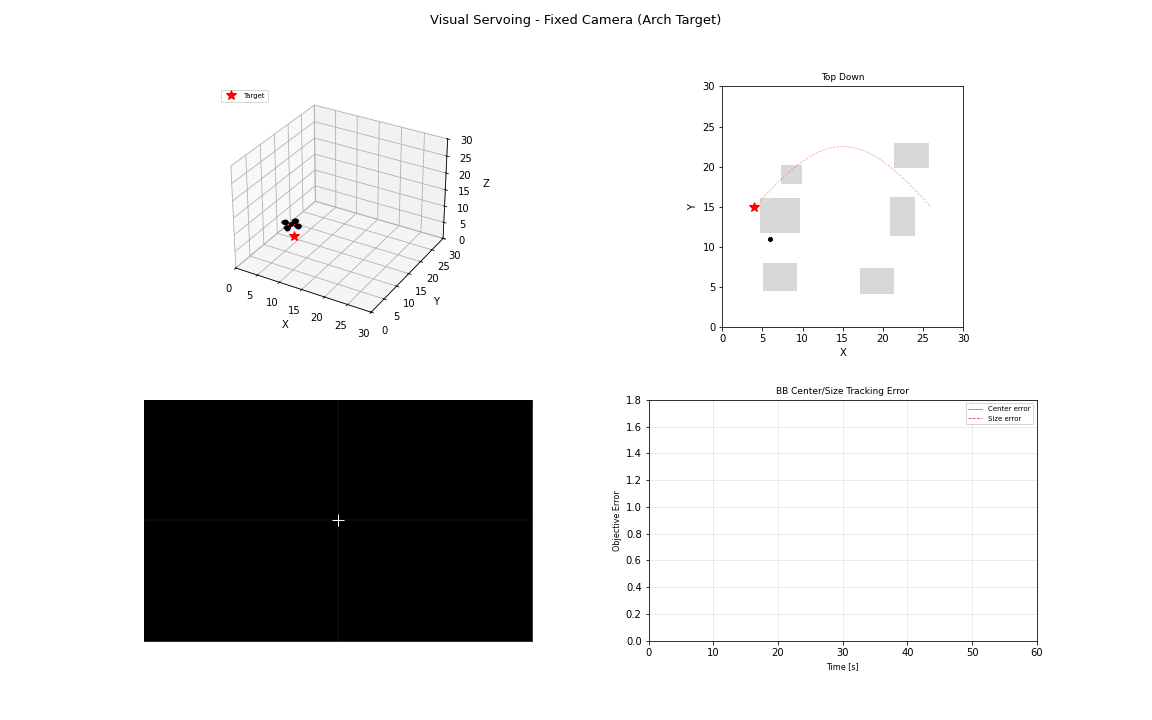

Evidence

References

• Chaumette and Hutchinson, Visual Servo Control Part I (2006)
• Chaumette and Hutchinson, Visual Servo Control Part II (2007)
