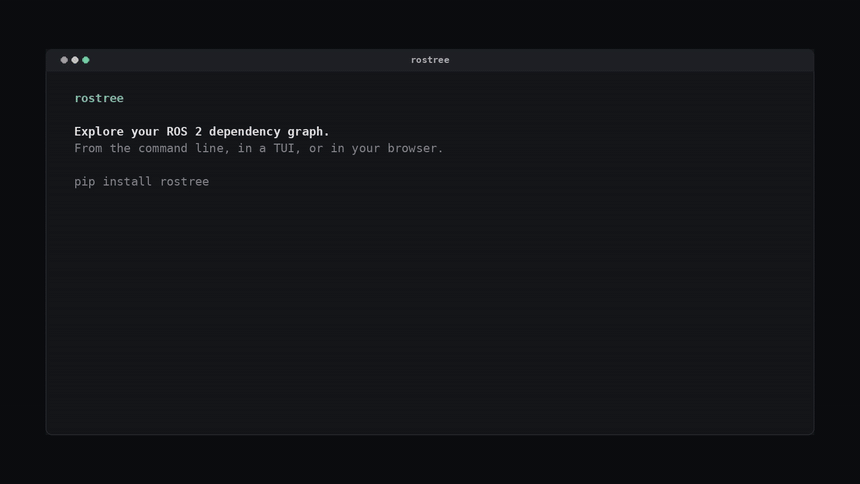

Explore your ROS 2 dependency graph — from the command line, in a TUI, or in your browser.

pip install rostree
source /opt/ros/<distro>/setup.bash   # and/or your workspace install/setup.bash
rostree                               # interactive TUI

rostree

Start here

  • Usage

    Every command, the TUI keymap, and the Python API.

  • Overview

    How the pieces fit: library, CLI, TUI, and the data that flows between them.

  • Package discovery

    Where packages come from — AMENT_PREFIX_PATH, colcon layouts, source trees.

  • Dependency trees

    package.xml parsing, the package index, and why repeats are collapsed.

  • The algorithms

    Eight algorithms behind rostree, each from the question it answers to the lines of code that answer it — with a command to see it run.

  • Build on rostree

    The library's layers, and four complete tools built on them: an architecture rule for CI, a ripple report, a dependency lock, a CSV export.

  • rostree and other tools

    What colcon graph, ros2 pkg and rosdep already do, and what rostree adds.

  • Publication

    We intend to publish rostree as a software paper: the venues, the plan, and what has to happen first.

  • Development

    Layout, pre-commit, CI, static analysis, and the HTML viewer.

  • Roadmap

    What shipped, what was dropped and why, and what is next.

The idea

A ROS dependency graph is a DAG, not a tree. rcutils sits under almost every branch, so expanding each path separately means drawing it thousands of times. rostree expands each package once, where it first appears, and references it elsewhere as ↩ see above — the convention cargo tree uses for (*).

That one decision is why a workspace-wide tree resolves in a fifth of a second instead of never finishing, and it is the same reason the HTML graph draws rclcpp once with every arrow into it rather than as a hairball.

Stability

From 1.0, the CLI commands and their flags and everything exported from rostree.api follow semantic versioning. Anything under rostree.core is internal. The exact text rostree prints is not covered — that output is for people; parse --json instead.

The test suite runs on generated fixtures and has not yet been exercised against a real ROS 2 installation, which is the top item on the roadmap. If rostree gets your workspace layout wrong, an issue describing it is the most useful thing you can send.
